HRB-20 Hand/Crash Rails

  • HRB-20
  • 3D View

HRB-20

3D View

  • null
    Acrovyn & Acrovyn PVC-Free

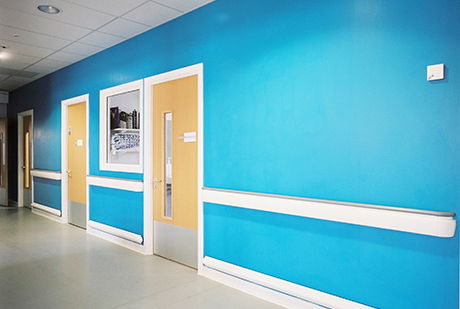

143mm high hand/crash rails offering pedestrian support and heavy duty impact protection. Two colours can be used to provide visual contrast.

  • null
    Heavy Duty
  • null
    Quick Lock
  • null
    Dual Colour
  • Comfortable grip handrail available in solid colours and contemporary finishes
  • Two colours can be used for visual contrast or in wayfinding schemes
  • Impact resistant crash rail cover over continuous aluminium retainer and bumper cushion for effective damage protection
  • Quick Lock brackets for fast installation and easy maintenance
  • Infill strip closes off retainer channel for ease of cleaning
  • Anti-ligature option featuring continuous, powder coated aluminium bracket
  • null
    Solid Colours
    Acrovyn (27) | Acrovyn PVC-Free (15)
  • null
    Finishes
    Woodgrains (6) | Metals (3) | Concretes (3)
ORDER A SAMPLE

Jump to

MOUNTING OPTIONS
COLOURS & FINISHES
DOWNLOADS
ACCESSORIES

Mounting Options

  • null
    Acrovyn
    HRB-20 – QUICK LOCK
    HRB-20AL – ANTI-LIGATURE
  • null
    Acrovyn PVC-Free
    HRB-20N – QUICK LOCK
    HRB-20ALN – ANTI-LIGATURE

QUICK LOCK

ANTI-LIGATURE

What is Quick Lock?

CS’ sturdy and efficient fixing system makes the installation of Acrovyn Hand/Crash Rails a simple, clean process.

How does it work?

The unique cam lock on the bracket simply slots into the back of the retainer, and the profile is locked or unlocked with the twist of a spanner. This allows faster installation, but also enables fast removal for maintenance, without compromising the integrity of the wall fixings.

Benefits:

  • No more drilling holes in the retainer
  • No more struggling with component alignment
  • Ease of bracket location and attachment
  • Allows for pre-assembly of retainer, cover and end caps off-site
  • Allows for easy maintenance
  • Offers long term savings

Colours & Finishes

  • null
    Solid Colours
    Acrovyn (27) | Acrovyn PVC-Free (15)
  • null
    Finishes
    Woodgrains (6) | Metals (3) | Concretes (3)
  • Acrovyn (27)
  • Acrovyn PVC-Free (15)
  • Acrovyn Finishes (12)

Acrovyn (27)

Due to the limitations of print and computer screens, actual colours may vary. We recommend making any colour selections from our free of charge samples service.

Approximate LRV values for CS Acrovyn colours and finishes have been determined using the CIE Y value measurement method.

Acrovyn PVC-Free (15)

Due to the limitations of print and computer screens, actual colours may vary. We recommend making any colour selections from our free of charge samples service.

Approximate LRV values for CS Acrovyn colours and finishes have been determined using the CIE Y value measurement method.

Acrovyn Finishes (12)

Woodgrains
Metallics
Concretes

Due to the limitations of print and computer screens, actual colours may vary. We recommend making any colour selections from our free of charge samples service.

Approximate LRV values for CS Acrovyn colours and finishes have been determined using the CIE Y value measurement method.

Stock Lengths & Fixings

  • Acrovyn: 4.0m
    Acrovyn PVC-Free: 3.0m
  • Brackets at max. 800mm centres; fixing into studwork or pattresses is recommended

Accessories

Various accessories are available to aid the installation of our products, or to enhance their look.
  • End caps with Quick Lock feature
  • External corners
  • Quick Lock brackets (standard)
  • Anti-ligature brackets (optional)
  • Vertical accent trims (optional) – Black (standard) or Light Grey
  • Removable kit for service ducts

Acrovyn®

  • Full product selection guide
  • Detailed technical information
