APF Series

APF-200-50 expansion joint cover
CS Expansion Joint Covers 06
CS APF Series Expansion Joint Cover 01
CS APF Series Expansion Joint Cover 02
CS APF Series Expansion Joint Cover 90 Degree Corner
CS Expansion Joint Covers APF_04
CS Expansion Joint Covers APF_05
CS Expansion Joint Covers APF_06
CS Expansion Joint Covers APF_07
CS Expansion Joint Covers APF_08
CS Expansion Joint Covers APF_09
CS Expansion Joint Covers APF_10
Bolton Interchange
CS Expansion Joint Covers APF_02
CS Expansion Joint Covers APF_03

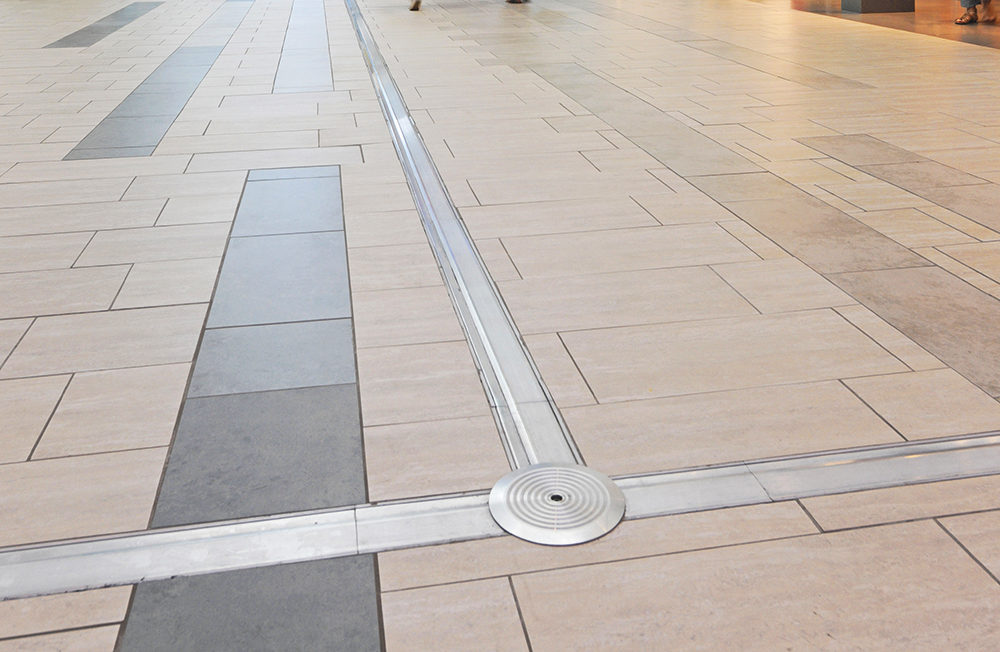

Recess mounted floor joint covers, highly resistant to rolling loads, distortion and wear. Five frame depths are available to suit a variety of situations and they can be mixed and matched if required. Cover plates and exposed frame sections are serrated to provide an anti-slip surface.

Series Details

  • Joint Width: up to 110mm
  • Horizontal: up to +40/-20mm
  • Vertical: up to ±15mm
  • Lateral: ∞ (Infinite)
  • Load Capability: 1000kg point load

See How this Joint Cover Works

Learn More about the APF


  • Recess mounted aluminium floor joint covers, highly resistant to rolling loads, distortion and wear
  • Exposed sections are serrated to provide an anti-slip surface
  • Five frame depths can be matched or mixed to suit
  • Suitable for interior or exterior areas and most floor finishes
  • Tamper-proof solution with no exposed fasteners
  • Durable and low maintenance
  • Load capability: 1000kg point load

Load Capability

APF floor joint covers are designed for high traffic areas with heavy rolling loads, such as airport terminals, malls or traffic hubs. They will withstand:

  • Forklifts with full pneumatic tyres; permissible total wight of 7 tonnes (tyre adhesion area 200x200mm).
  • Trucks with pneumatic tyres; permissible total weight 30 tonnes.
  • Vehicles and goods handling trucks with tyres of hard plastics; permissible load of 6.5kg per every mm of tyre width.

Movement Details

FLOOR TO FLOOR COVERS

To order any of the below models, please call +44 (0)1296 652800

ModelRapid Ship?Joint
Width
(mm)
Frame
Depth
(mm)
Exposed
Surface
(mm)
Min. Recess
Depth Required
(mm)
Min. Recess
Width Required
(mm)
Horizontal
Movement
(mm)
Vertical
Movement
(mm)
Lateral
Movement
(mm)
APF-200/25NO10-60258330193+20/-10±6∞
APF-200/50Buy Now10-60508455214+20/-10±6∞
APF-200/75NO10-60758480214+20/-10±6∞
APF-200/100NO10-6010084105214+20/-10±6∞
APF-300/25NO20-852510830219+30/-10±10∞
APF-300/50NO10-855010955239+30/-10±10∞
APF-300/75NO10-857510980239+30/-10±10∞
APF-300/100NO10-85100109105239+30/-10±10∞
APF-400/25NO35-1102513330243+40/-20±15∞
APF-400/50NO20-1105013455264+40/-20±15∞
APF-400/75NO20-1107513480264+40/-20±15∞
APF-400/100NO20-110100134105264+40/-20±15∞

FLOOR TO WALL COVERS

To order any of the below models, please call +44 (0)1296 652800

ModelRapid Ship?Joint
Width
(mm)
Frame
Depth
(mm)
Exposed
Surface
(mm)
Min. Recess
Depth Required
(mm)
Min. Recess
Width Required
(mm)
Horizontal
Movement
(mm)
Vertical
Movement
(mm)
Lateral
Movement
(mm)
APFW-200/25NO10-70258330138+20/-10±6∞
APFW-200/50NO10-70508455149+20/-10±6∞
APFW-200/75NO10-70758480149+20/-10±6∞
APFW-200/100NO10-7010084105149+20/-10±6∞
APFW-300/25NO40-952510830163+30/-10±10∞
APFW-300/50NO10-955010955174+30/-10±10∞
APFW-300/75NO10-957510980174+30/-10±10∞
APFW-300/100NO10-95100109105174+30/-10±10∞
APFW-400/25NO50-1202513330188+40/-20±15∞
APFW-400/50NO20-1205013455199+40/-20±15∞
APFW-400/75NO20-1207513480199+40/-20±15∞
APFW-400/100NO20-120100134105199+40/-20±15∞

Note: Lateral movement is restricted by site conditions

Materials, Colours & Finishes

Aluminium sections: mill finished as standard, except for wall frames which are supplied clear anodised. Cover plates and exposed floor frame sections are serrated to offer slip resistance.

ORDER A SAMPLE

Transitions

We also offer the following factory pre-fabricated transitions:

  • 90° corner
  • T-junction
  • 4-way junction

Fixings

Floor: fixings (by others) to suit substrate at 450mm centres and to achieve minimum 40mm embedment

Wall: fixings (by others) to suit substrate at 450mm centres

NB: To ensure installation flexibility frames are not supplied pre-drilled.

DOWNLOAD INSTALLATION INSTRUCTIONS

Accessories

Fire Barriers

Construction Specialties’ expansion joint fire barrier systems offer fire protection for vulnerable expansion joints, preventing the 'chimney effect'.

Moisture Barriers

Expansion Joint Moisture Barrier is a flexible EPDM or SBR membrane, available with an optional drainage assembly, for joints that aren't already waterproof

Acoustic Barriers

CS Acoustic Barrier is a flexible, non reinforced mass loaded vinyl that resists the passage of sound waves and reduces the transmission of noise.

Expansion Joint Covers

  • Full product selection guide
  • Detailed technical information
